Online fully automatic six head surface mount machine

Fully automatic online six head multifunctional surface mount machine XJS-Z806

1、 Product Introduction
XJS-Z806 is a high-precision, multifunctional, online fully automatic surface mount machine. The machine adopts a six group mounting head design and is equipped with a high-precision component recognition system. It uses track loading and unloading to connect the front and rear equipment. Xinjiusheng has independently developed a one click switching operating system in Chinese and English, which is easy to operate and can be widely used in various fields such as LED lighting fixtures, LED power drivers, small home appliance circuit boards, etc.

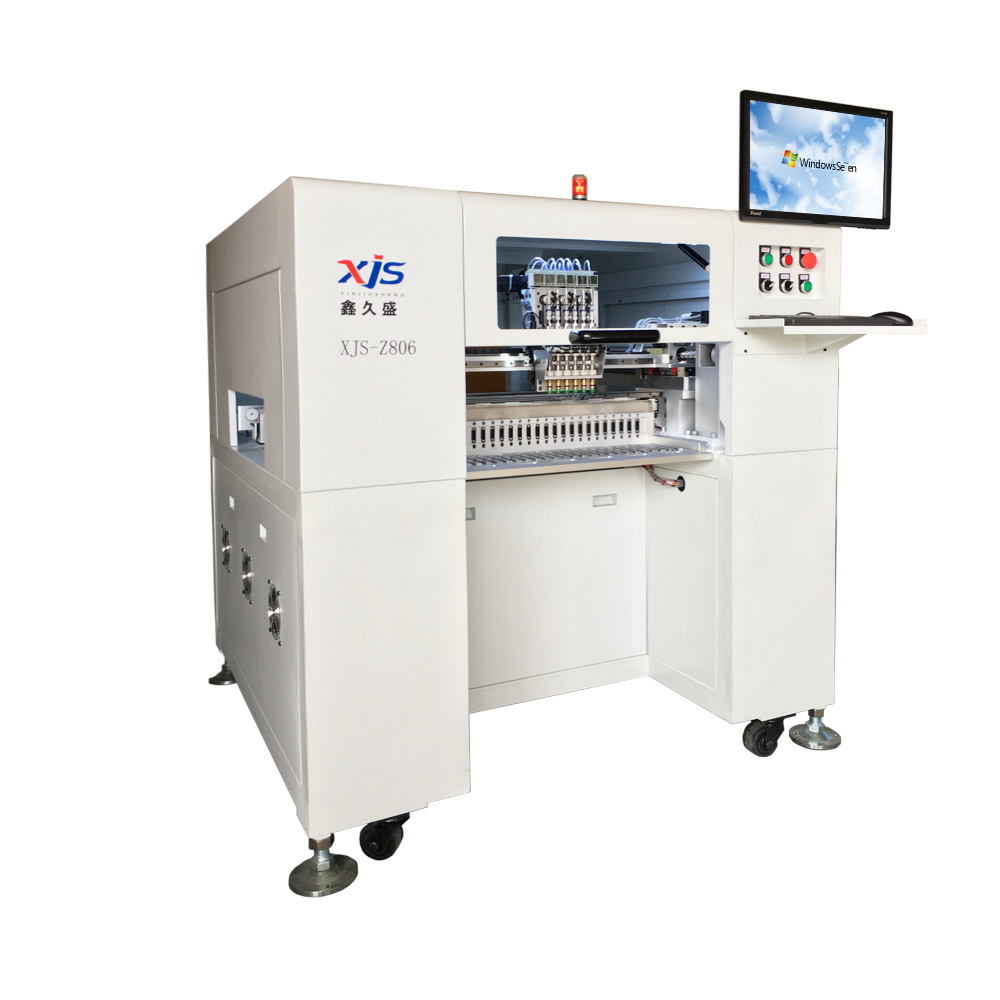

2、 Product images

3、 Functional Features
1. The X-axis and Y-axis use high-precision imported precision screw rods to improve equipment operation accuracy and transmission speed;
2. MARK visual correction system takes photos and recognizes the position of PCB boards to ensure the accuracy of surface mounting.
3. A component recognition system consisting of six sets of high-speed recognition cameras and one high-definition precision recognition camera
4. The Z-axis of the sticker head adopts 6 sets of imported splines, efficiently completing LED material picking and discharging;
5. Powerful function: up to 48 feeders can be installed to meet the installation requirements of various LED products.
6. Easy to operate: Chinese graphical user interface, easy to operate. Programming is concise, capable of storing and editing files, and can be easily accessed;
7. Easy to maintain: The design is simple and easy to maintain. The cost of replacing parts is low, and the maintenance cost is also low.
8. The software, circuit, and hardware structure of the entire machine are independently developed by our company and have independent intellectual property rights.

4、 Application scope

Various LED lighting fixtures, LED power drivers, small household appliance circuit boards, etc

5、 Reference configuration
1. Control system: industrial computer+precision motion control card+branded LCD display
2. Software system: Xinjiusheng independently developed Chinese operating system
3. Sports motor: Original Panasonic motor from Japan
4. Adhesive suction nozzle: independently developed multiple models of suction nozzles
5. Sliding device: precision screw+linear guide rail
6. Visual device: upper MARK point recognition+lower component recognition+high-precision IC recognition camera
7. Feeder: Adopting NXT electric Feida

6、 Technical parameters
